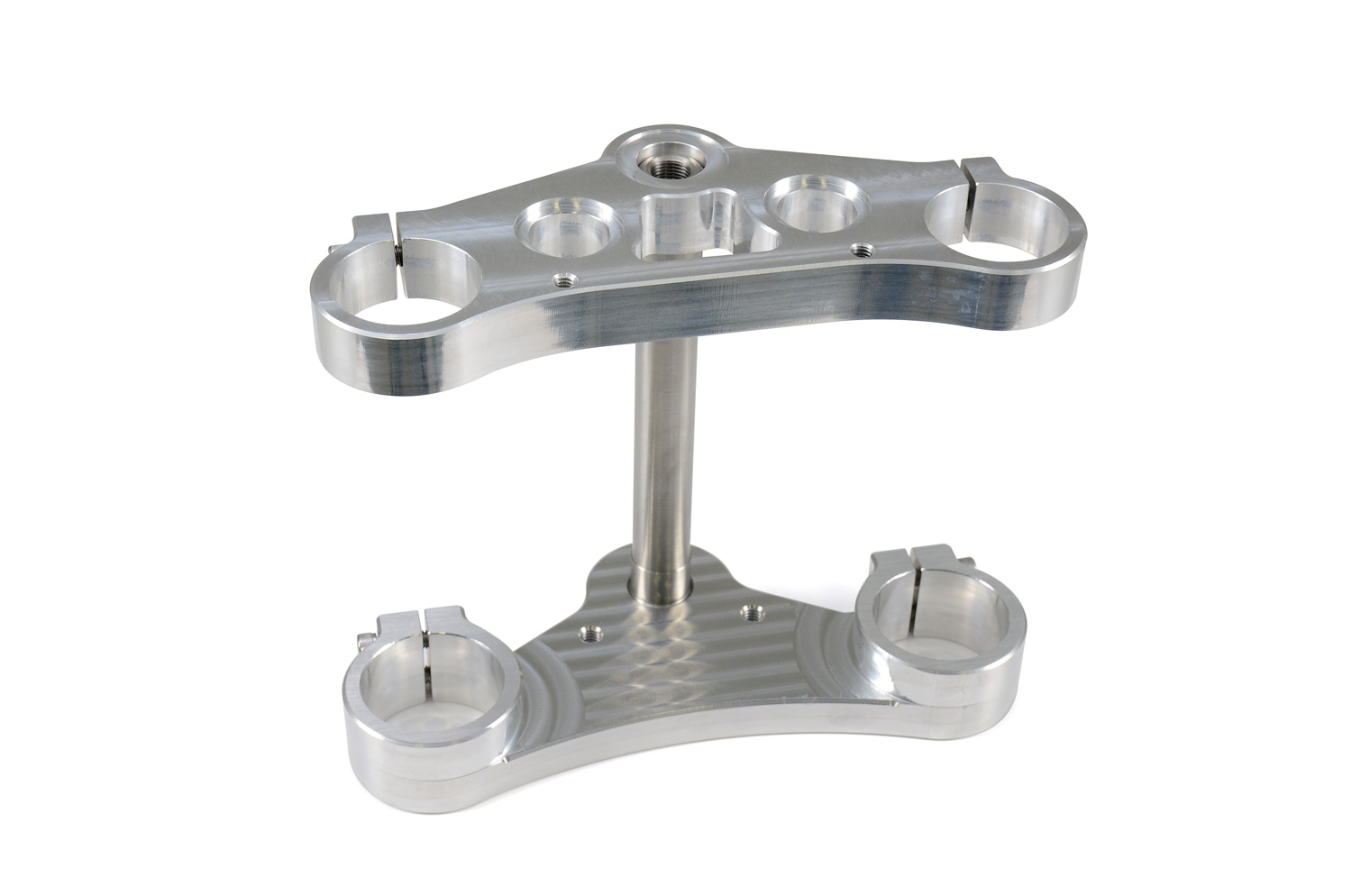

Brock’s Performance has professionally designed and fabricated Dyna Triple Trees with Reversible Bottom Clamp which will allow conversion of select Harley-Davidson® FXR™, Dyna™, Sportster™ forks to late model inverted sportbike forks to take your riding to the next level. These triple clamps not only allow the use of readily available OEM forks (GSX-R1000, Hayabusa, etc...,) but also simultaneously add the ability to use corresponding wheels and brakes, increasing overall suspension performance and comfort while providing world class braking options. Featuring zero (1-1) rake and the stock 2 3/8" Dyna offset (optional 1.7” reduced trail option available), we also accommodate the stock forks stops and lock (when possible.) Available in 50/54mm, 50/55mm, and 50/56mm and 207mm (GSX-R) or 214mm (Hayabusa) fork spreads. See overview and technical tabs for more info. Proudly made in the USA.
Known Fitment Applications:
- Harley-Davidson® FXR™ (87-94) (Including CVO)
- Harley-Davidson® Dyna™ (90-06)
- Harley-Davidson® Sportster™ (87-03)
All remaining years of FXR™, Dyna™ and Sportster™ will accept the clamp with small modifications. The clamp will also fit custom applications utilizing a 1” DIA Harley-Davidson® steering stem. This is a bolt on application for any frame with the fork stop on the front of the neck; all other frames will require a fabricated fork stop.
Dyna Triple Tree Weight Breakdown:
- Top Clamp: 1.90 lb.
- Steering Stem: 1.70 lb.
- Bottom Clamp: 2.25 lb.
Total = 5.85 lb.
American V-Twin Fitment Statement:
Although all attempts have been made to handcraft a product which will fit a wide variety of machines for a particular make/model/year, due to idiosyncrasies between particular years, available options, accessories, etc…, fitment cannot be 100% guaranteed. If upon assembly, fitment issues are discovered which are beyond the installers ability or willingness to correct, then please feel free to contact our customer service department, alert Brock’s Performance of the fitment issue for your particular make/model, and obtain an RMA (Return Material Authorization). Brock’s Performance will accept unmodified triple trees, in 100% resalable condition for a full refund.
Please note, refunds are issued after product inspection at Brock’s Performance, and the customer is responsible for any/all shipping charges.
