• Simple installation for most applications
• Innovative swivel design allows movement for
  smooth operation with no binding
• CNC machined 6061-T6 billet aluminum
• Black anodized finish with laser etched logo
• Corrosion free stainless steel hardware
• Mounting bolt is a standard M8-1.25 thread

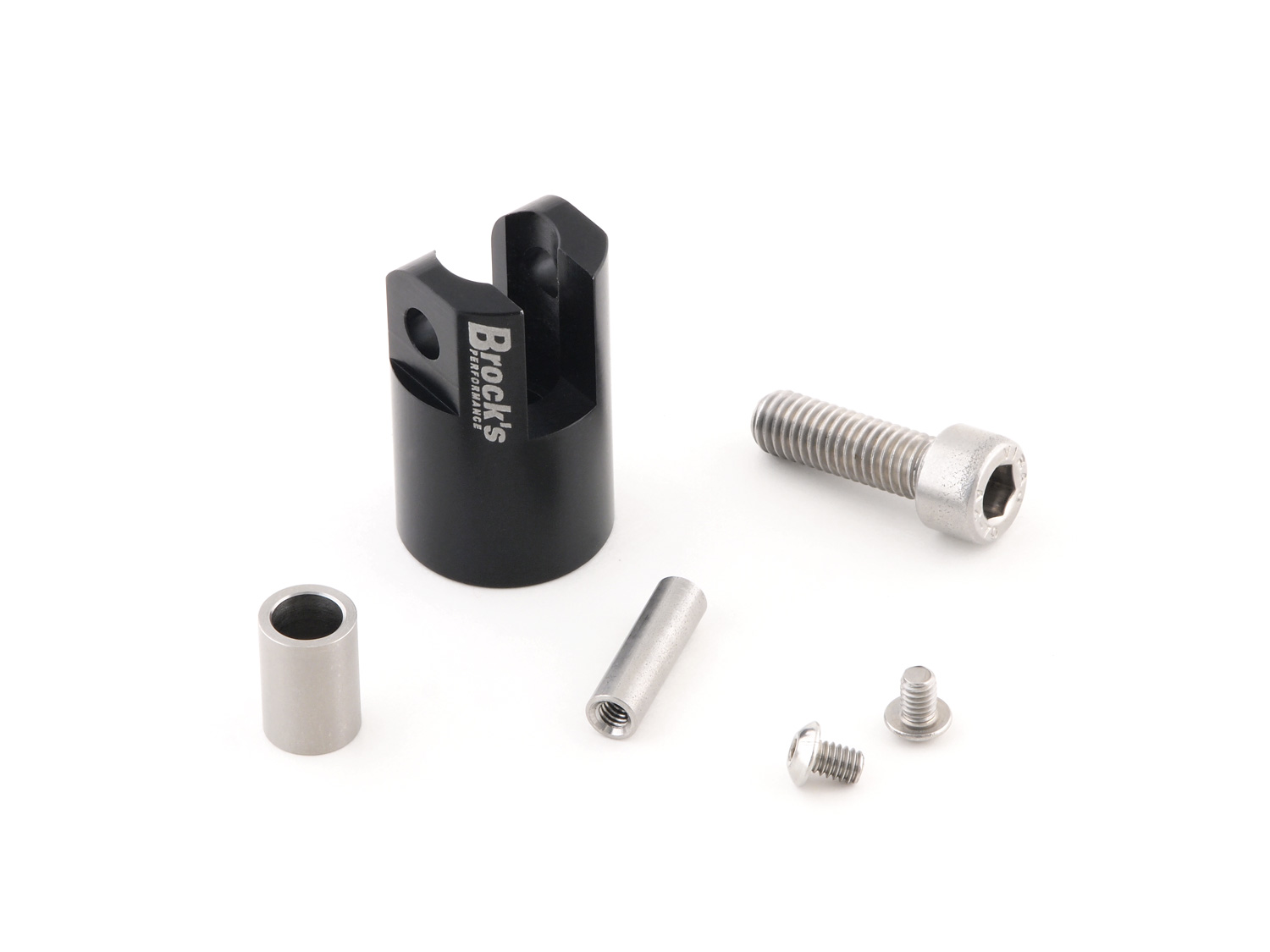

Innovative swivel design allows for movement in air shifter cylinder to prevent binding of rod and missed shifts. Ultra-trick black anodized aluminum with stainless steel bushing and corrosion free stainless steel hardware.

Universal Air Shifter Cylinder Mounting Kit is engineered for a simple installation on most bikes using a M8-1.25 tapped mounting hole. For frame mounting, consult the OEM service manual for additional information.

Designed for air cylinders with 3/8” wide rear pivot mount with 1/4” hole. Cylinder will mount with the ports facing to the front or rear, unlike most mounts having the ports facing outward.

When used on the Busa for motor mount installation, this kit is uses a 2 inch stroke air cylinder with a mounted length of 8 ¼ inches. Cylinder lengths would be 7 ¼ inches retracted to 9 ¼ inches extended, centering the stroke of the cylinder with the shift lever at rest. The position of the shift lever may need to be adjusted to obtain these dimensions, consult a service manual for adjustment procedure.
